详细说明

Features

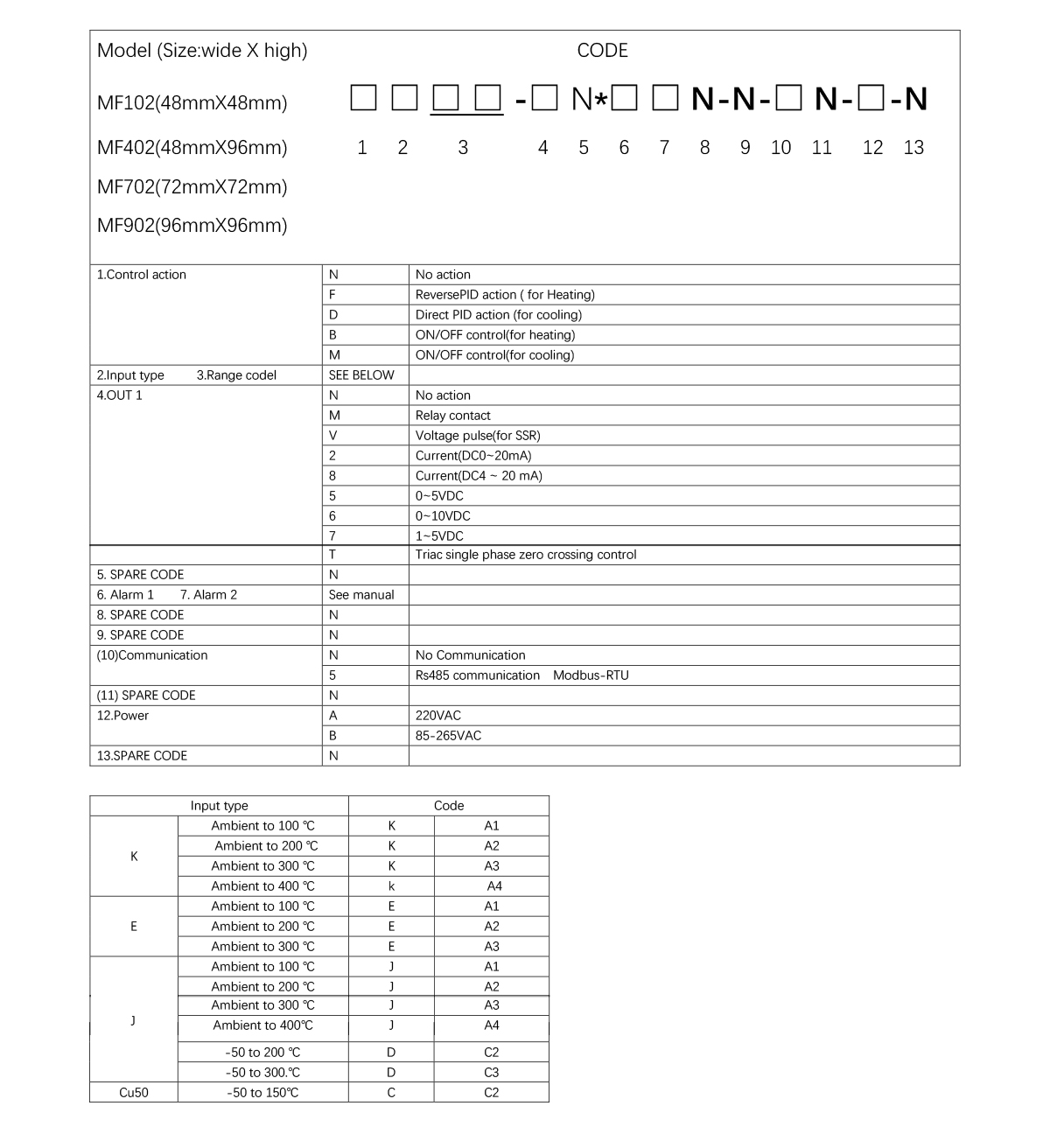

1.    MF02 series instrument: 3 big LED display0-100%LED bar display output ,

2.    Accuracy: (Max±0.5% fus or± 1)≤±1 digit

3.    TC input,clients can set TC input(K,E,J)by keyboard,but can not used for RTD input type.Pt100 input type controller can not be used for TC input type and Cu50 type. Cu50 input type controller can not be used for TC input type and Pt100 type.

4.    As usual, controllers were set as out1(heating) before leaving factory, of course, users can select out1(cooling)

5.    PID control: As usual, controllers have PID control before leaving factory, with Auto-tuning function
